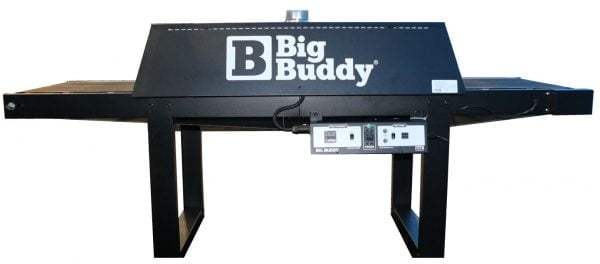

BBC Big Buddy Series Conveyor Dryer – High-Capacity, Compact Curing Solution

The BBC Big Buddy Series Conveyor Dryer is a compact, lightweight, and high-performance drying system designed for small to mid-sized shops needing increased production capacity. Equipped with BBC’s Black Body infrared heating technology, this dryer ensures even edge-to-edge heat distribution, eliminating hot spots and preventing under- or over-curing.

With its two finely tuned heating zones, the Big Buddy quickly reaches curing temperatures and holds them consistently, improving wash-fastness for all ink types, including plastisol and water-based inks. Its floating belt tracking system ensures smooth operation with minimal maintenance, providing years of trouble-free performance.

Key Features & Benefits:

• Dual-Zone Infrared Heating – Custom coiled long-wave infrared elements create a heat plateau for superior curing.
• Even Heat Distribution – Edge-to-edge heat uniformity prevents temperature imbalances across the belt.
• Auto-Plateauing Technology – Ensures consistent curing temperatures, reducing the need for multiple passes.
• No Airflow Required for Water-Based Inks – Cures plastisol and water-based inks efficiently without additional airflow.

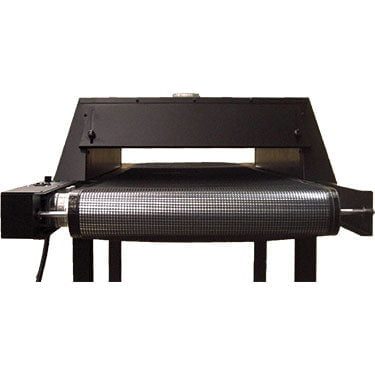

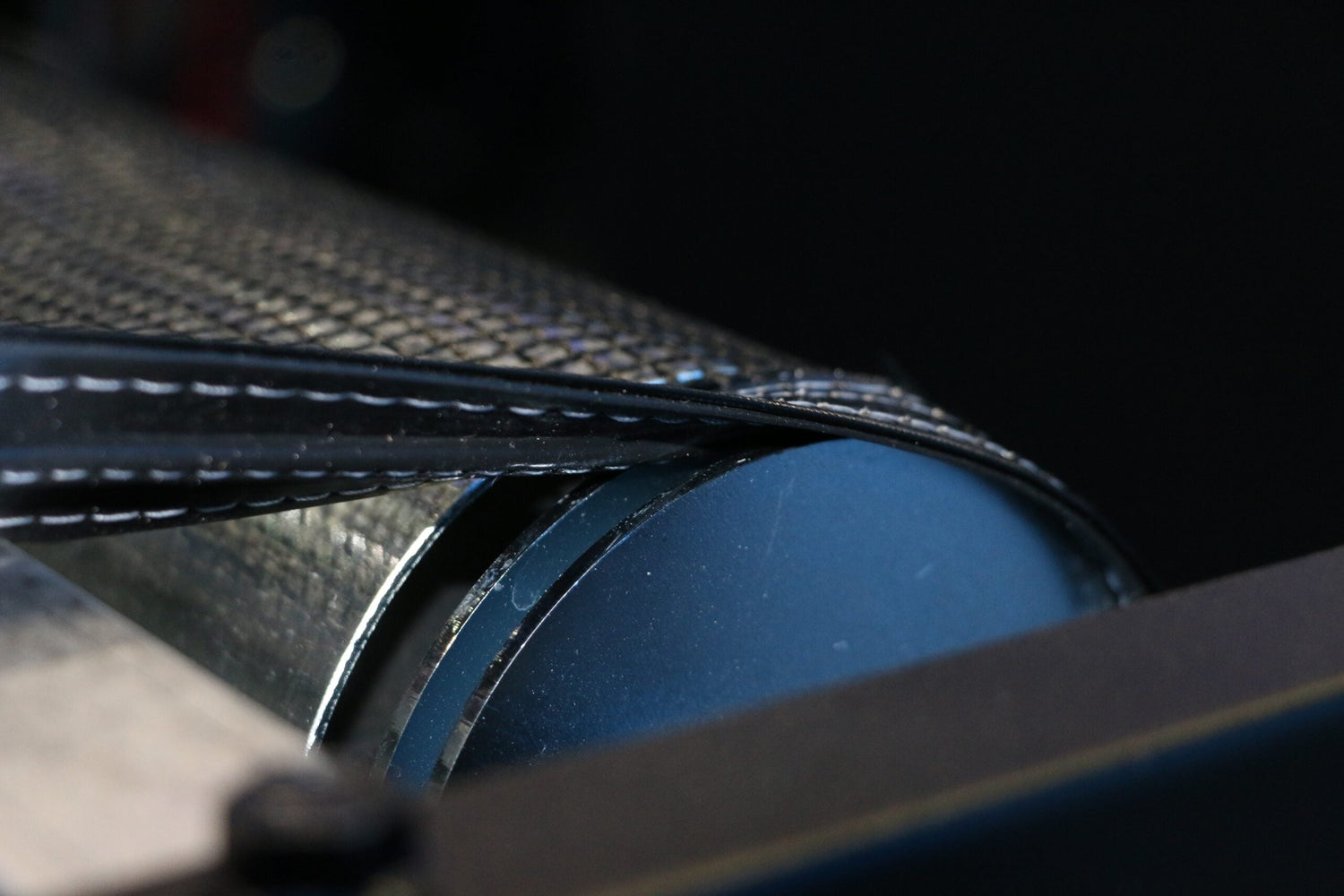

• Floating Belt Tracking Guide – Keeps the belt aligned for smooth operation with minimal adjustments.
• Compact & Lightweight Design – Fits into small shops while providing high-capacity production.
• Easy Assembly & No Crating Charge – Ships in four cartons on a skid for quick setup.

Technical Specifications:

• Model Number: BB17-6500
• Overall Length: 8 ft.
• Chamber Length: 48 inches
• Belt Width: 24 inches
• Belt Height: 33 inches
• Belt Speed: 1-20 feet per minute
• Garment Capacity: 300+ garments per hour
• Heater Dimensions: (2) 18" x 24"
• Heater Wattage: 6500W
• Heater Power Required: 240V AC / 25A
• Heater Plug Type: NEMA L6-30P
• Belt Drive Power Required: 120V AC
• Shipping Weight: Approx. 480 lbs.

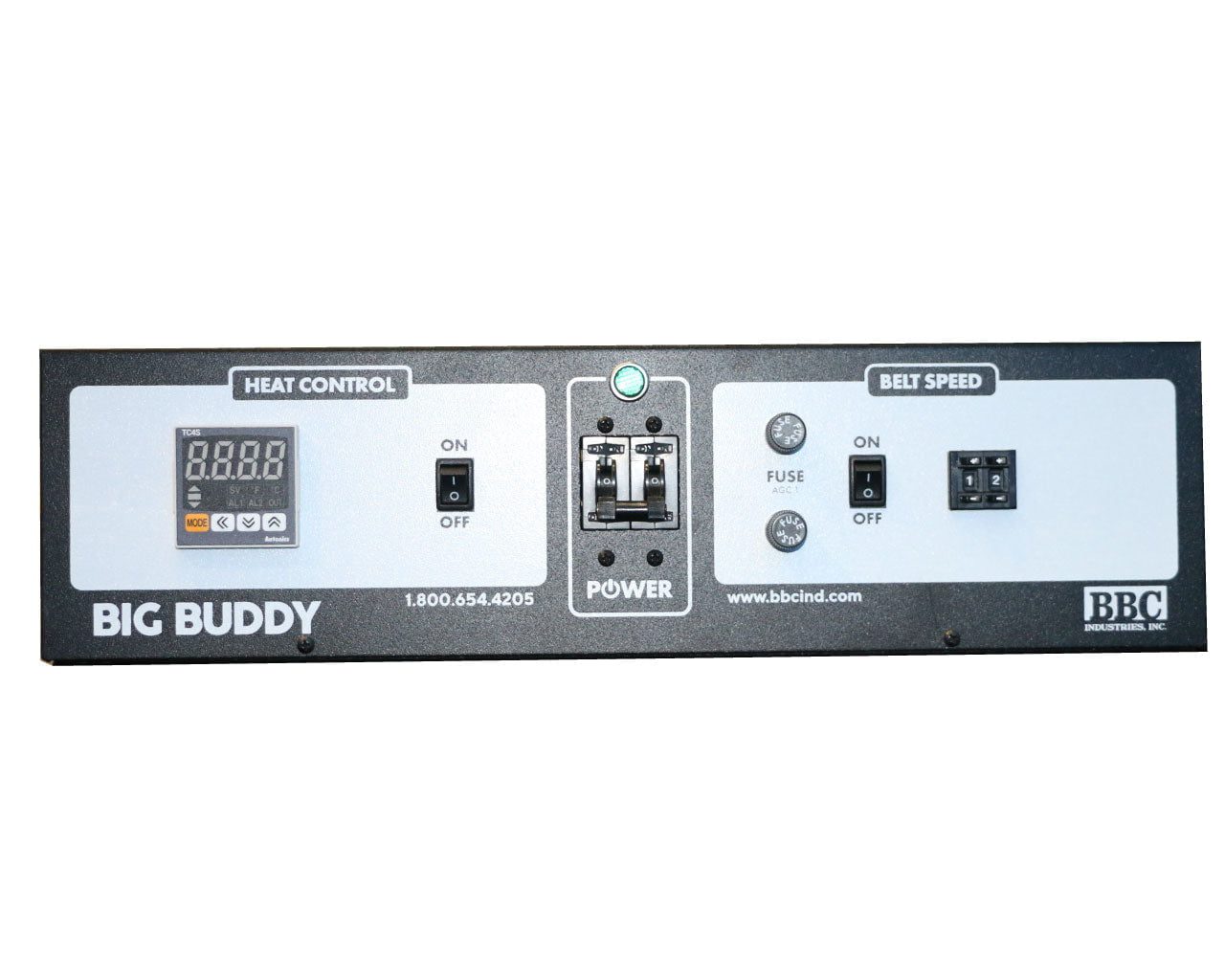

• Heat Control: Solid-State

Why Choose the BBC Big Buddy Conveyor Dryer?

• Increases production capacity without taking up excess space.
• Ensures fast, even curing for plastisol, water-based, and discharge inks.
• No need for multiple passes—cures water-based inks without forced airflow.
• Smooth belt operation with a floating tracking guide for low-maintenance use.
• Quick, easy assembly with no crating charge for shipping.

Ideal For:

• Small to mid-sized screen printing businesses looking to scale production.
• Shops curing plastisol, water-based, and discharge inks efficiently.
• Businesses seeking a cost-effective yet high-performance conveyor dryer.
• Printers looking to eliminate the need for multiple passes with water-based inks.
