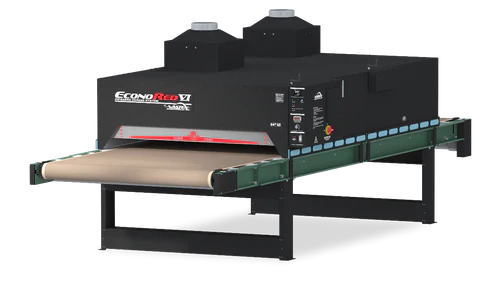

Vastex EconoRed VI Infrared Conveyor Dryer
Vastex EconoRed VI Infrared Conveyor Dryer is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Vastex EconoRed VI Infrared Conveyor Dryer
Vastex EconoRed VI Infrared Conveyor Dryer is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
The Vastex EconoRed VI Infrared Conveyor Dryer is a high-output, heavy-duty drying system designed for professional screen printers and DTF applications. Featuring advanced digital controls, a focused exhaust system, and adjustable belt-to-heater height, this dryer delivers consistent, efficient curing for plastisol, water-based, and discharge inks.
With an expandable design, durable construction, and precision-engineered heat control, the EconoRed VI Series ensures faster production speeds, greater efficiency, and long-term reliability.
Note: This product requires filling out a mandatory electrical form before purchase. Contact a representative to complete the form to ensure timely order processing.
Ships only to the continental U.S.
Key Features:
✔ Heavy-Duty X-Series Conveyor Belt Tracking System – Ensures smooth and precise belt movement, eliminating misalignment issues.
✔ Infrared Focusing System – Optimized heat distribution for more power at a lower cost.
✔ Adjustable Heater Height – Allows for 2" - 7" (5 - 17.7 cm) clearance between the belt and the heater for custom curing settings.
✔ Digital PID Temperature Control – Provides accurate temperature regulation to ±1°F, ensuring consistent curing results.
✔ DC Belt Speed Motor with Digital Display – Offers precise speed control for uniform curing across all substrates.
✔ Focused Exhaust System – Removes fumes and moisture from the chamber, improving airflow efficiency and preventing overheating.
✔ Expandable Design – Add heat chambers and belt extensions for higher production capabilities (HD Drive required for belts over 17’ long).
✔ Compact, High-Heat Engineering – Designed to be shorter and smaller while maximizing heat output and production efficiency.
Available Models & Specifications:
| Model | Belt Width x Length | Heater Width | Chamber Length | Standard Wattage |
|---|---|---|---|---|
| EconoRed VI 30” | 30” x 13¼’ | 24” | 9’ | 15,600W |
| EconoRed VI 54” | 54” x 13¼’ | 48” | 9’ | 31,200W |
| EconoRed VI 78” | 78” x 13¼’ | 72” | 9’ | 46,800W |
Curing Capacity:
| Ink Type | 1 Row | 2 Rows | 3 Rows |
|---|---|---|---|
| Plastisol (25-sec dwell time) | 900+ garments/hr | 1,800+ garments/hr | 2,700+ garments/hr |
| Water-Based/Discharge (70-sec dwell time) | 300+ garments/hr | 600+ garments/hr | 900+ garments/hr |
Why Choose the Vastex EconoRed VI Conveyor Dryer?
The Vastex EconoRed VI is a high-performance, industrial-grade dryer built for maximum efficiency, accuracy, and scalability. Whether curing plastisol, water-based, discharge, or DTF adhesives, this dryer provides fast, even heating and superior production speeds, making it a must-have for high-output print shops.
✔ Optimized for High-Volume Production
✔ Fast, Accurate Temperature Control for Consistent Curing
✔ Expandable for Increased Capacity
✔ Heavy-Duty, Industrial-Strength Construction for Longevity
