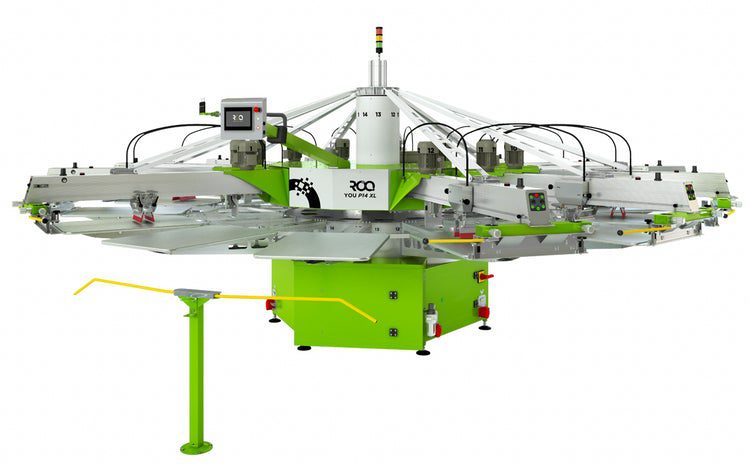

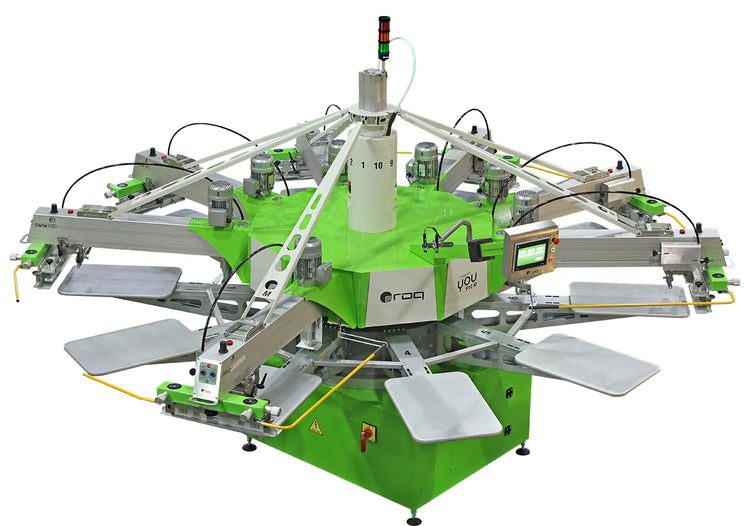

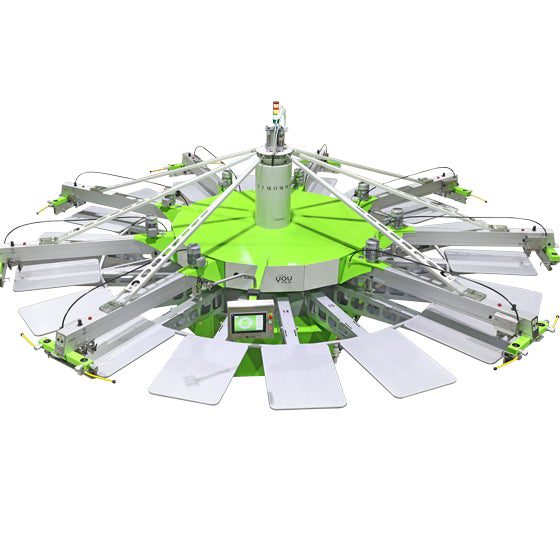

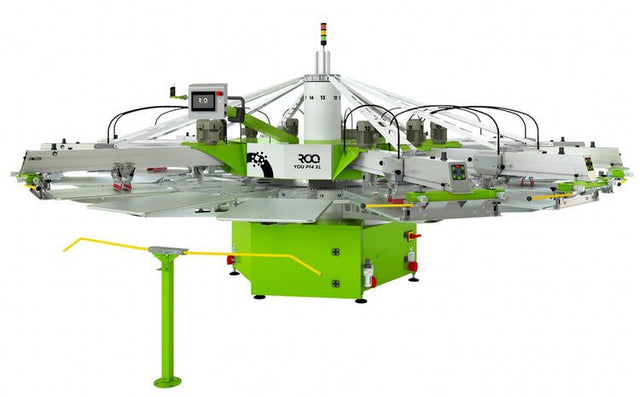

ROQ YOU Automatic Screen Printing Press – Customizable High-Performance Press

Upgrade your screen printing business with the ROQ YOU Automatic Screen Printing Press, a versatile, high-performance press designed for businesses of all sizes. Whether it's your first automatic press or an expansion to your production line, the YOU press combines advanced technology, durability, and precision to handle small to large-scale operations. With configurations ranging from 4 to 20 colors and 8 to 22 pallets, plus a maximum production speed of 1,000 prints per hour, this industry-leading automatic press is built for efficiency, speed, and exceptional print quality.

Key Features & Benefits:

✔ Customizable Configurations – Available in 4 to 20 color and 8 to 22 station setups.
✔ Large Print Capacity – Maximum print size of 33" x 39", accommodating a wide range of applications.
✔ High-Speed Production – Capable of printing up to 1,000 pieces per hour for high-volume output.
✔ Precision Indexing – Accuracy of -0.001" ensures sharp registration and consistent prints.
✔ Durable & Reliable Construction – Built to handle rigorous, continuous production.
✔ Integrated Flash Connections – Supports up to 10 flash dryers for increased versatility.
✔ Ergonomic & User-Friendly Design – Designed with the operator in mind for seamless workflow integration.
✔ Optimized for Business Growth – Perfect for expanding print shops looking to scale operations.

Specifications:

• Colors: 4 to 20
• Pallets: 8 to 22
• Flash Dryer Connections: Up to 10
• Maximum Print Size: 33" x 39"
• Maximum Frame Size: 39" x 51"
• Maximum Pallet Size: 35" x 48"
• Index Precision: -0.001"
• Maximum Production Speed: 1,000 prints per hour
• Power Requirements:
  • Press Only: 3-phase / single-phase
  • Maximum Consumption: 10 kVA
• Air Requirements:
  • Compressed Air Consumption: 250 L/min - 8.9 CFM per printhead
• Machine Dimensions:
  • Minimum Diameter: 11.3'
  • Minimum Height: 7.1'
  • Minimum Base Width: 3.6'

Why Choose the ROQ YOU Automatic Screen Printing Press?

✔ Built for Growing Businesses – An ideal first automatic press or expansion solution for medium to large-scale production.
✔ High-Performance Printing – Delivers sharp, accurate prints at high speeds.
✔ Customizable Setup – Configure the press to match your business needs.
✔ Durable & Efficient – Built with long-lasting, high-quality materials for consistent, reliable production.

Ideal For:

✔ Growing Screen Printing Shops
✔ High-Volume Apparel Printing
✔ Businesses Expanding Into Automatic Printing
✔ Production Facilities Requiring Speed & Efficiency

Take your screen printing business to the next level with the ROQ YOU Automatic Screen Printing Press—designed for precision, performance, and profitability. Order today and automate your success!
