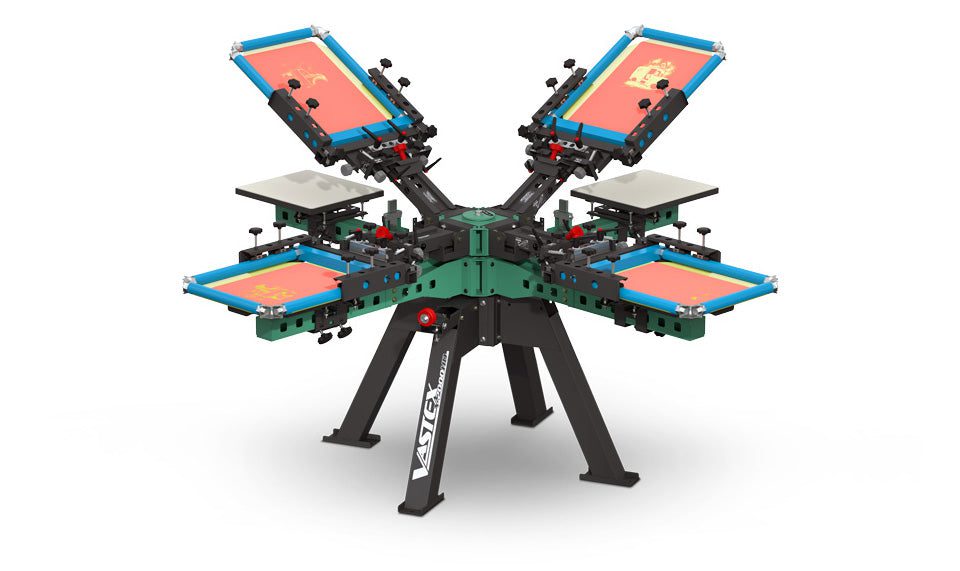

Vastex V-2000HD – 4 Station, 4 Color Manual Screen Printing Press

The Vastex V-2000HD 4 Station, 4 Color Manual Screen Printing Press is a high-performance solution designed for professional screen printers who demand precision, durability, and efficiency. Built with industrial-strength steel components, this press offers smooth operation, unmatched registration accuracy, and expandability, making it a long-term investment for growing businesses.

With a 25-year warranty, advanced micro-registration system, and 100% wrench-free adjustments, the V-2000HD 4x4 delivers high-quality results with minimal setup time, allowing businesses to maximize productivity while maintaining superior print quality.

Key Features & Benefits:

1. Industrial-Strength Design for Maximum Durability

• Heavy-Duty Steel-Tube Legs & 3-Inch Square Steel Rotor Arms – Provides exceptional stability and resilience under high-production demands.
• Never-Warp Steel Pallets – Equipped with rubber tops to ensure consistent, high-quality printing over time.
• Ball Bearing-Based Moving Components – Enhances smooth operation and reduces wear, ensuring long-term reliability.

2. Precision Engineering for Accurate Multi-Color Registration

• Heavy-Duty Print Head with Fastest Setup in the Industry – Allows for lightning-fast micro-registration adjustments.
• Zero Backlash Bearings on Screen Arm Pivot – Maintains perfect registration alignment, eliminating unwanted movement.
• Embedded Registration Bearings – Keeps multi-color prints sharp and aligned, even when using spray tack adhesives.
• 6-Way Screen Leveling – Ensures pinpoint accuracy for multi-color designs.

3. Expandable & Future-Proof for Growing Businesses

• Fully Expandable from 1-Station, 1-Color to 10-Stations, 10-Colors – Scales up as business demands increase.
• Modular Design – Upgrade one station or one color at a time, adapting to increasing production needs.
• Rotary Floor Press Configuration – Enhances workflow efficiency and production output.

4. 100% Wrench-Free Adjustments for Quick Setup

• Tool-Free Head Leveling, Off-Contact, & Micro-Registration Adjustments – Simplifies setup and fine-tuning without additional tools.
• Adjustable Micro Clamp Levers – Provides quick and accurate screen positioning.
• Wide Steel Rear Screen Clamps & Precision-Ground Center Shaft – Enables off-center clamping, adding versatility for different print jobs.

5. Optimized for Efficiency & Productivity

• Elevated Pallets for Quick Loading – Eliminates the need to stretch garments over the pallet arm, making loading and unloading easier.
• Gas Lifters with 16 Position Variable Lift Strength – Adjustable tension for screens of different weights.
• Compatible with Clamp-On DiGiT™ Athletic Numbering Jigs & Side-Clamp Accessories – Expands printing capabilities for sportswear, oversized prints, and specialty applications.

Why Choose the Vastex V-2000HD 4 Station, 4 Color Press?

The V-2000HD 4x4 is an exceptional manual screen printing press, built for screen printers who require accuracy, reliability, and expandability. Whether you're printing multi-color graphics, athletic numbering, or specialty designs, this press delivers consistent, high-quality results with ease.

With its 100% wrench-free adjustments, zero backlash technology, and modular expandability, the V-2000HD is designed to grow with your business.

Specifications:

Ideal For:

✔ Professional screen printers needing high-volume production with accurate multi-color registration.
✔ Growing shops looking for an expandable system that evolves with business demand.
✔ Print shops requiring a heavy-duty, long-term investment backed by a 25-year warranty.
✔ Businesses printing multi-color graphics, athletic numbering, and specialty designs.
