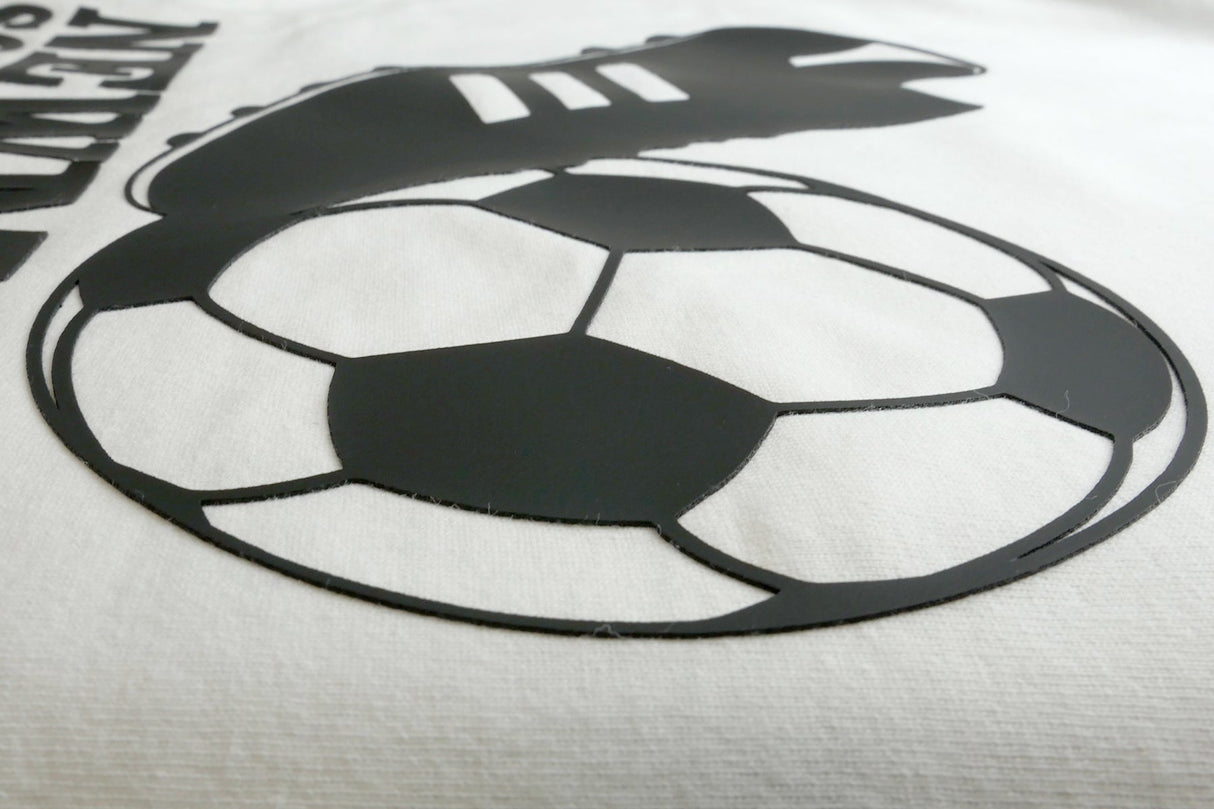

Dimension 2 Heat Transfer Vinyl – 19.5" x 1 YD

Dimension™ – Ultra-Thick 3D Heat Transfer Vinyl (HTV) for Bold Designs

Dimension™ is a high-density heat transfer vinyl (HTV) designed for creating bold, raised 3D effects on garments. With an impressive thickness of 24 mils (600 microns), this premium-quality HTV provides a striking, dimensional appearance, making it perfect for fashion-forward designs, branding, and standout graphics.

Unlike standard HTVs, Dimension™ offers a thick, sturdy finish, ensuring long-lasting durability and a unique textured feel on cotton, polyester, and blended fabrics.

Key Features & Benefits

✔ 3D Raised Effect – Adds a thick, bold, and dimensional feel to designs.
✔ Extremely Durable & Long-Lasting – Stands up to wear and multiple washes.
✔ Free from PVC, Plasticizers, & Heavy Metals – A safe, high-quality material for apparel.
✔ Non-Stretch Design – Holds its shape permanently, ideal for bold graphics.
✔ Stackable Weeded Designs – Manufactured without a pressure-sensitive carrier for easy stacking and layering.

Recommended Applications

✔ Streetwear & Fashion Apparel – Perfect for bold lettering, logos, and standout graphics.
✔ Branded Merchandise – Enhances logos and promotional apparel with a premium look.
✔ Sports & Team Uniforms – Provides durability and visibility on jerseys and activewear.
✔ Custom Embossed-Style Graphics – Ideal for designs that demand a raised, tactile finish.

Material & Specifications

• Material Type: Ultra-Thick Heat Transfer Vinyl (HTV)
• Thickness: 24 mils (600 microns)
• Carrier Type: Non-Pressure Sensitive (for easy stacking of weeded designs)
• Stretchability: Will NOT stretch (Avoid fine-detail designs)

Cutting & Application Instructions

Cutting Guidelines:

✔ Blade Type: 60° Blade Recommended (due to material thickness)
✔ Cut Setting: Mirror Image (Always cut in reverse for HTV application)
✔ Pressure: *High (Adjust according to cutter’s specifications for thick materials)

Heat Press Instructions:

✔ Temperature: 320°F (160°C)
✔ Pressure: Medium, even pressure
✔ Press Time: 25 seconds
✔ Peel Type: Cold Peel (Allow to fully cool before peeling)

Care & Maintenance Recommendations

✔ Wash inside out in warm water to maintain durability.
✔ Hang dry ONLY – NOT suitable for tumble drying or dry cleaning.
✔ Avoid excessive stretching or folding to preserve the raised effect.
