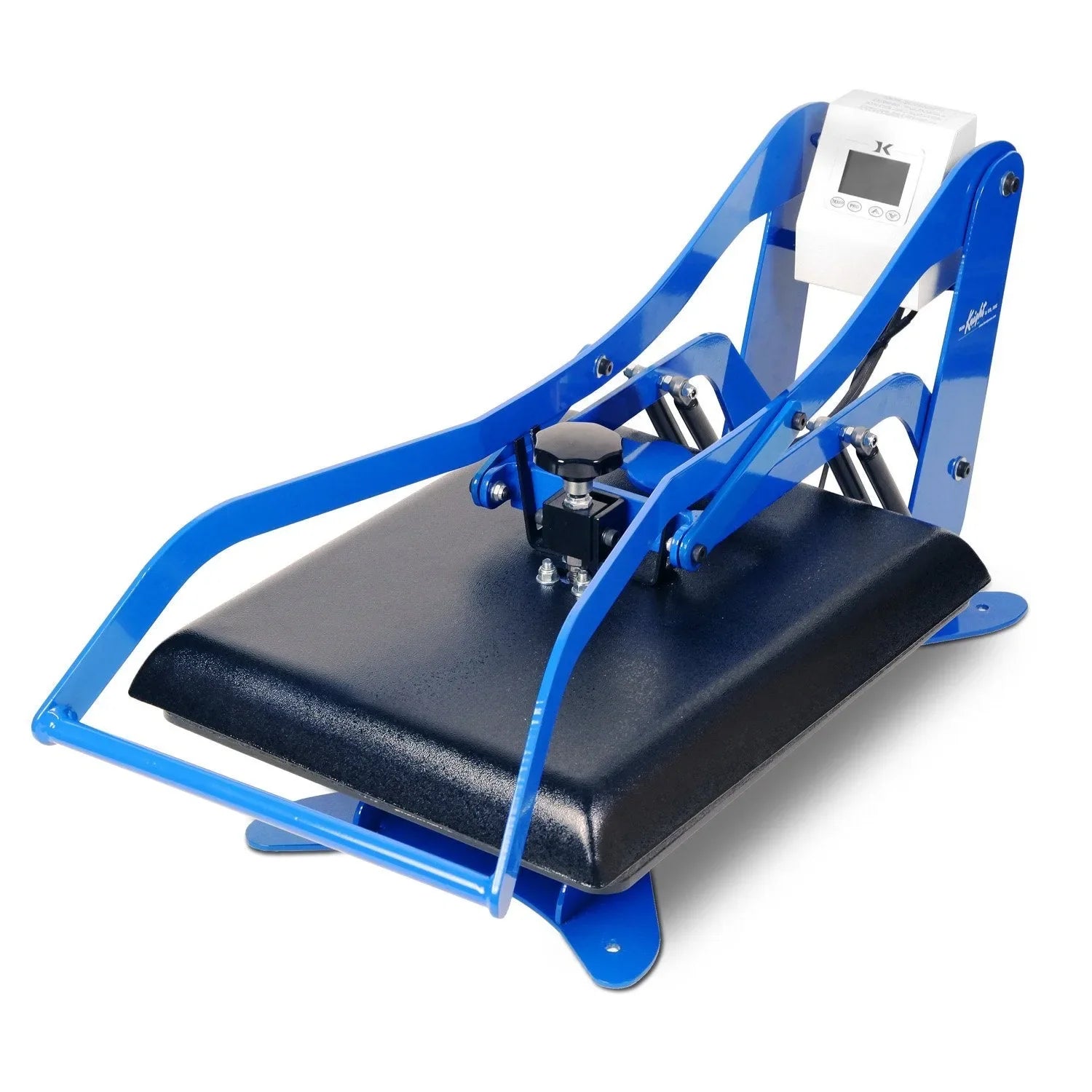

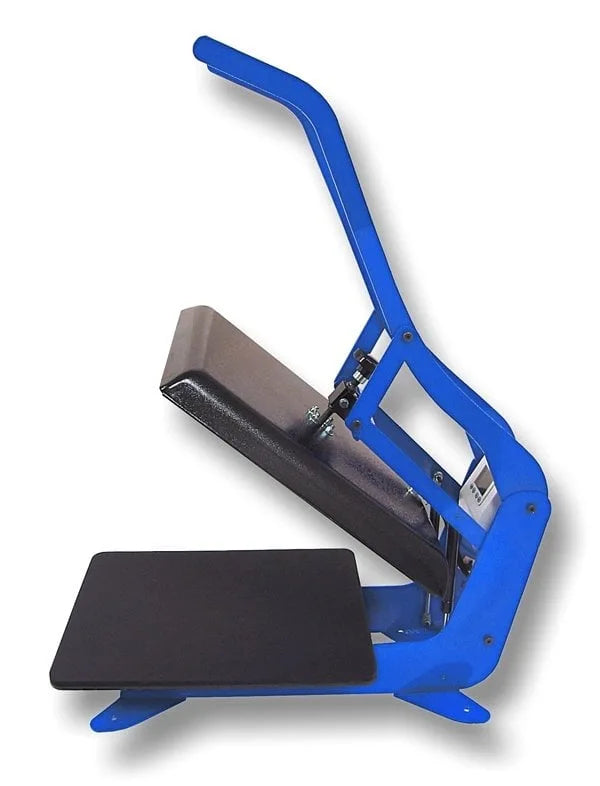

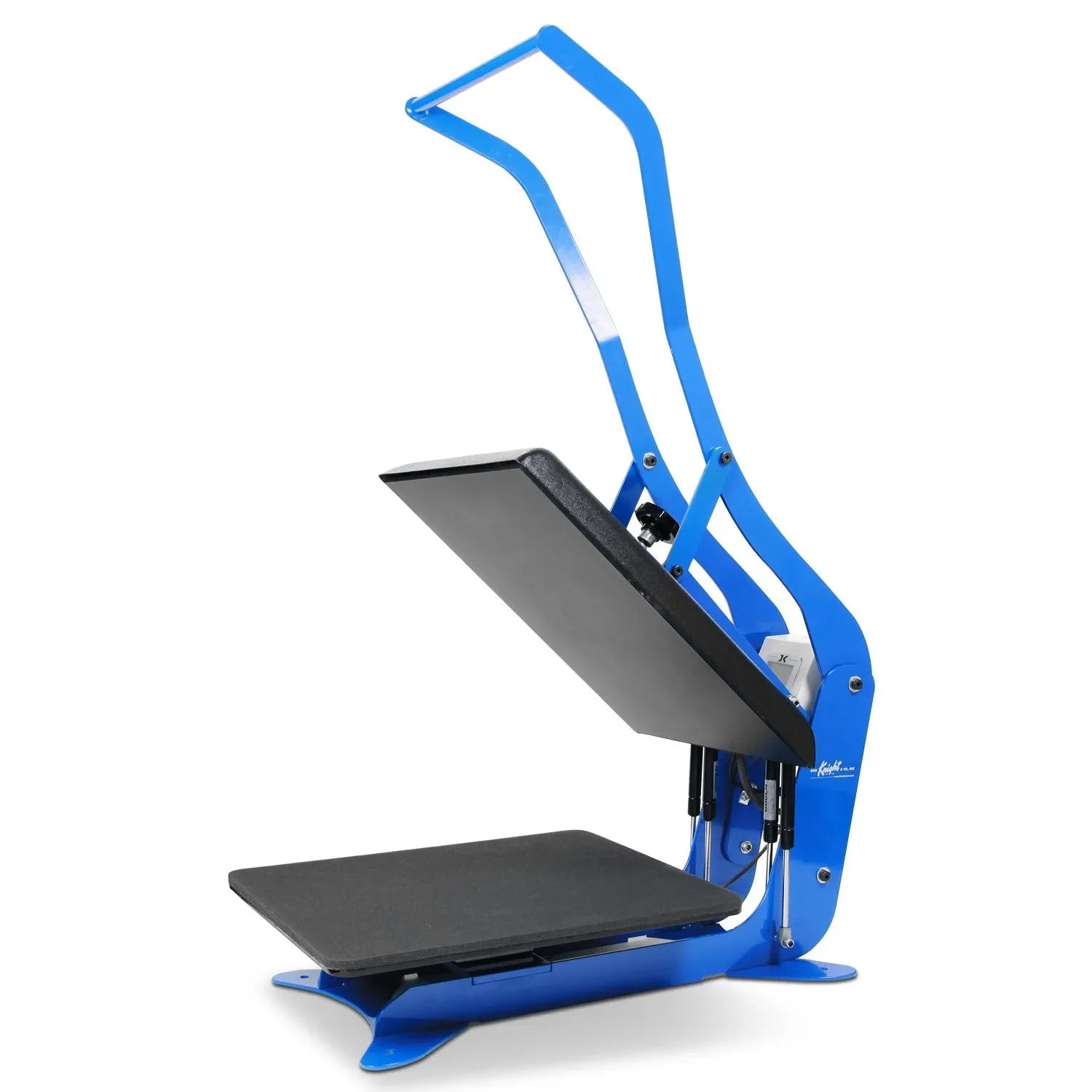

Digital Knight DK20 Clamshell Heat Press – 16" x 20" for High-Pressure Heat Transfers

The Digital Knight DK20 Clamshell Heat Press is a 16" x 20" high-pressure heat press designed for precision, ease of use, and durability. Featuring a wide-opening design, this press allows for full access to the lower platen, making loading garments easier and more efficient. Unlike traditional clamshell presses, the DK20 raises the back of the heat platen away from the lower table, providing better accessibility and maneuverability.

This press is ideal for shops with space limitations, offering portability and mobility without sacrificing performance. Additionally, the DK20 can be upgraded with a Pop-Up automatic release feature for semi-automatic operation, or a twin station upgrade to create a high-efficiency production setup.

Key Features & Benefits:

• All-Thread™ Table Loading Design – Allows for easy garment positioning and quick adjustments.
• Fully Digital Temperature Control – Adjustable from 32°F to 600°F, ensuring precise heat application.
• Automatic Digital Timer & Dual Pre-Press Timer – Enhances workflow efficiency and repeatability.
• Digital Pressure Bar Graph – Displays real-time pressure readings for accurate pressing.
• SuperCoil-Microwinding™ Heater Technology – Provides even heat distribution across the platen.
• Interchangeable Bottom Tables – Expands versatility for different pressing applications.
• Extreme High-Pressure Capability – Handles a variety of materials and specialty transfers.
• Self-Lifting Gas Spring & Wide Opening – Ensures effortless operation and easy garment placement.
• Lightweight & Portable Design – Weighs only 103 lbs, making it easy to move and transport.
• Temperature Readout Accuracy (-2°F) – Ensures consistent, reliable results.
• User-Selectable End-of-Cycle Alarms – Alerts operator when press cycle is complete.
• Tracks Pressing Cycle Counts – Records total number of press cycles for production monitoring.
• PTFE-Coated 3/4" Thick Heat Platen – Prevents sticking and ensures smooth heat application.

Upgrade Options for Enhanced Productivity:

• "Pop-Up" Auto-Release Upgrade – Converts the DK20 into a semi-automatic heat press for faster production.
• Twin Station Upgrade – Allows for high-efficiency dual station operation for continuous workflow.

Technical Specifications:

• Model: DK20 (16" x 20" Clamshell Press)
• Weight: 103 lbs
• Power Requirements: 1800W / 15A / 110V (Available in 220V for International Use)
• Machine Dimensions: 36" L x 17" W x 16" H

Warranty & Support:

• Lifetime Warranty on Heat Platen
• 5-Year Warranty on Frame
• 3-Year Warranty on Digital Controller
• 1-Year Warranty on Parts
• FREE Lifetime Tech Support!

Why Choose the Digital Knight DK20?

• Compact yet powerful design for professional heat transfers.
• Wide-opening platen provides superior access and garment placement.
• Customizable with auto-release and twin station upgrades.
• Digital precision ensures consistent heat, time, and pressure control.
• Heavy-duty steel construction guarantees durability and longevity.

Ideal For:

• High-volume garment decorators and heat transfer professionals.
• Sublimation, DTF transfers, HTV, and specialty heat printing.
• Shops needing a portable, high-performance heat press.
• Businesses looking for upgradeable automation features.
