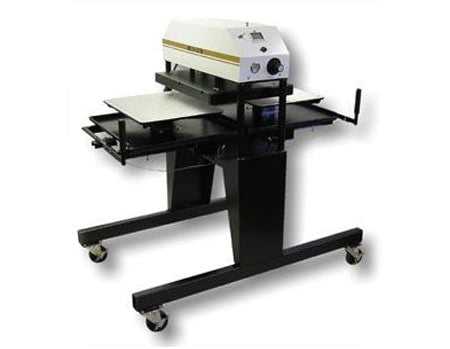

Geo Knight Digital Knight Air Operated 16X20 Factory Twin Shuttle 394

Maximize Efficiency with Dual Shuttle Workstations & High Force Pressing

The 394 Shuttle Press is a high-performance, twin-station heat transfer press, designed for high-production environments requiring maximum efficiency and precision. Available in 16" x 20" and 20" x 25" heater block sizes, this press allows operators to continuously load and unload materials while the other station is pressing, eliminating downtime and increasing throughput.

With its powerful pneumatic system, the 394 Shuttle Press delivers up to 12,000 lbs of force, making it ideal for embossing, sublimation, multimedia foiling, and deep embossing applications. Combined with the Digital Knight control system, this press ensures precise heat regulation, consistent pressure, and repeatable results for T-shirts, textiles, ceramics, woods, metals, and more.

Key Features & Benefits:

• Twin Shuttle Dual Workstations – Minimizes idle time by allowing continuous production with one station loading while the other presses.
• 12,000 lbs Max Applied Force – Suitable for heat pressing, deep embossing, and special effect transfers.
• Digital Knight Control System – Advanced digital temperature & time control for consistent heat application.
• Smooth Roller Bearing Slide Rails – Ensures easy movement of shuttle tables for quick positioning.
• Built-in Safety Features – OSHA-approved dual safety operation controls, emergency release buttons, and circuit protection.
• Heavy-Duty Construction – Solid steel welded framework for durability and stability.
• SuperCoil-Microwinding Heater Technology – Ensures even heat distribution with no recovery lag.
• Accommodates Various Substrates – Works with T-shirts, ceramics, wood, metal, mousepads, laminates, and more.
• Programmable Presets – 70 preset options for quick setup and repeatability.
• Air Regulator & Gauge – Adjustable 20-110 PSI range for precision pressure control.

Additional Features:

• Temperature Range: 32°F - 600°F (selectable °C or °F).
• Automatic Digital Timer – Includes dual pre-press settings for workflow efficiency.
• User-Selectable End-of-Cycle Alarms – Alerts operator when pressing is complete.
• Records Pressing Cycle Counts – Tracks total press operations for production monitoring.
• Casters for Easy Mobility – Built-in wheels allow for repositioning and transport.
• Custom Bottom Table Castings – Optional custom-sized and shaped bottom tables for specific layout needs.

Technical Specifications:

• Model: 394-TS 16" x 20" Twin Shuttle Press
• Power Requirements: 3600W / 17A / 220V
• Air Compressor Requirement: 15-gallon tank, 2cfm at 100psi, 3/8" air line
• Weight: 850 lbs
• Machine Dimensions: 60" W x 48" D x 55" H

Warranty & Support:

• Lifetime Warranty on Heat Platen
• 1-Year Warranty on Parts
• FREE Lifetime Tech Support

Why Choose the 394 Shuttle Press?

• Optimized for high-speed production, minimizing press downtime.
• Dual-station operation allows for non-stop workflow efficiency.
• Heavy-duty industrial construction ensures long-lasting durability.
• Superior heating technology prevents cold spots and ensures even results.
• Built-in OSHA-compliant safety features protect operators.

Ideal For:

• Large-scale garment production & heat transfer applications.
• High-demand environments requiring continuous operation.
• Businesses working with T-shirts, textiles, sublimation, and special effect decorating.
• **Professional printers needing maximum force for embossing and heat pressing.
