Geo Knight Digital Knight Maxipress Air
Geo Knight Digital Knight Maxipress Air - 32" x 42" MaxiPress Air is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Geo Knight Digital Knight Maxipress Air - 32" x 42" MaxiPress Air is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description

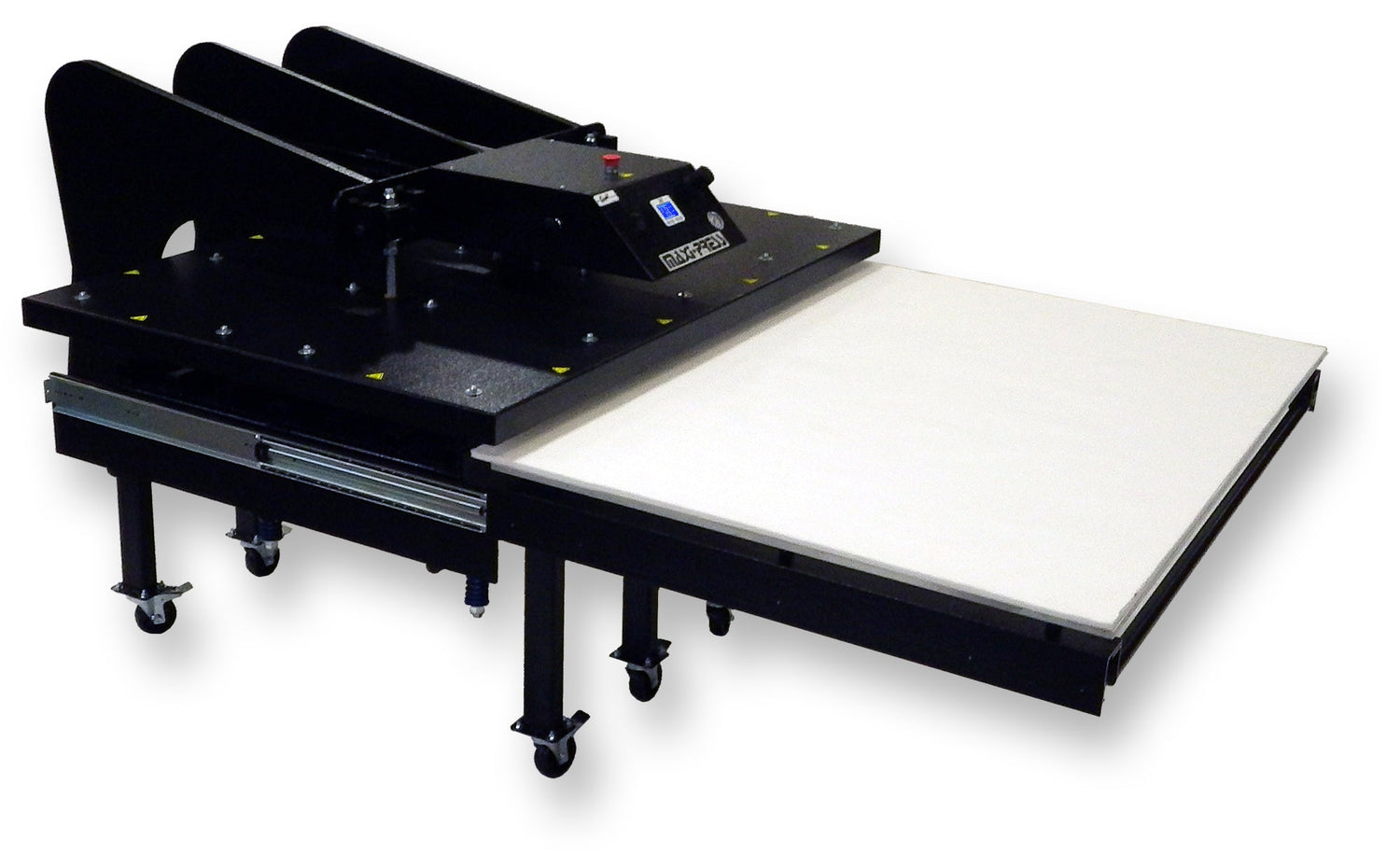

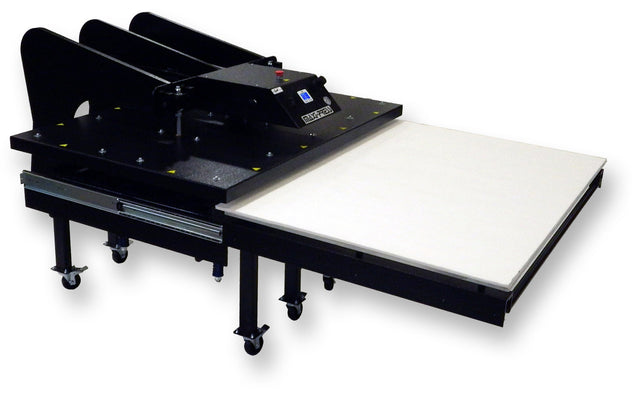

The MAXI•PRESS AIR is an Automatic large format heat transfer press intended for more automated and higher pressure needs than the Manual version. The MAXI•PRESS AIR provides an oversized platen & a better production-oriented press with a single front loading table and high pressure pneumatic lifting system.
This pressure system is powered by a dual air-bag, 10-ton, 20,000 lbs max force self leveling mechanism. The press is activated with a push of a button, and automatically releases at the end of the timing cycle. The front console features the Digital Knight control, regulating digital temperature and digital automatic timing control, as well as full air pressure regulation.
The heavy steel triple reinforced welded C-Frame design is built to withstand a lifetime of intense pressing and automatic operation, and allows for full draping of materials over the front, left and right sides of the press, without hindrance. For a large format heavy pressure automatic press that is one step below the larger industrial 931 Triton machines, the MAXI•PRESS AIR is the solution.

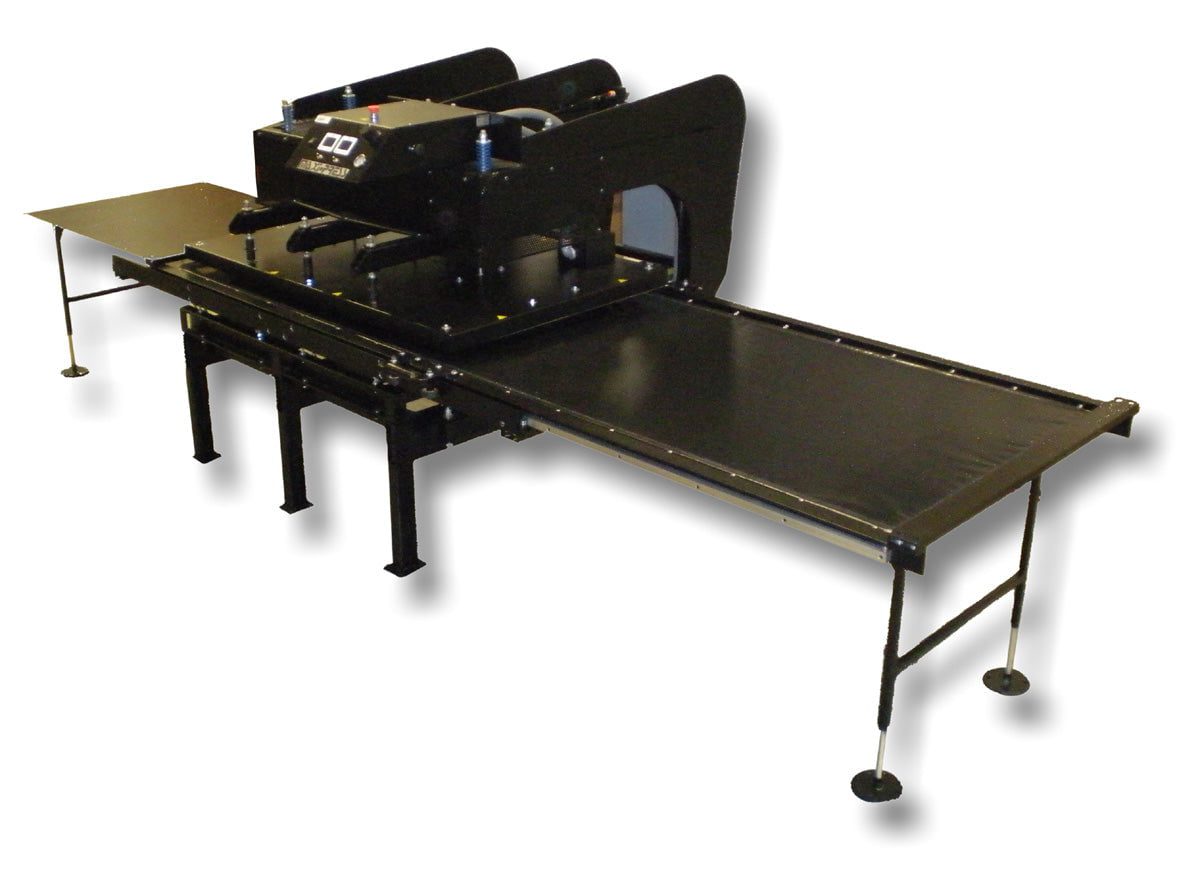

Below is a photo of the Top & Bottom heat twin station version of the MaxiPress - with a video of double-sided "all-over" printing.
Features
- Available in Single shuttle (standard) or Dual loading table format (optional)
- SuperCoil-Microwinding™ heater technology
- Ultra thick heater block assembly
- Solid steel pressure bars
- Heavy steel frame structures
- 20,000 lbs force, 10-ton air bag lift mechanism
- Self leveling pressure system
- Solid lower platen base
- Solid loading bed with ultra thick nomex padding
- Dual button easy-activate safety circuit
- Heavy duty locking casters for easy movability and solid foundation support
- Automatic press, release, temp & timer controls
Warranty
- FREE LIFETIME Tech Support!
- Full one year warranty on heating element, controls and entire press
Specs
- Minimum Compressed Air Required: 20gal, 4cfm, 100psi, 3/8" line
- Electrical for 44x64: 208V-230V, 18000W, 1PH, 85A, 100A breaker recommended (3ph/18KW/50A optional add $375)
- Electrical for 32x42: 208V-230V, 9000W, 1PH, 42A, 50A breaker recommended
- Top & Bottom Heat: 44x64 = 36KW/3PH - 32x42 = 18KW/1PH
Pricing
The Maxi•Press AIR models are priced simply by heater block size. The list below notes the most common sizes and their respective pricing.
| Model | Description | Price |
|---|---|---|
| MAXI-3242AP | 32" x 42" MaxiPress Air | $ 12,950.00 |
| MAXI-3242AT | 32" x 42" Air Twin Shuttle | $ 16,700.00 |
| MAXI-3242AB | 32" x 42" Air Top & Bottom Heat SINGLE | $ 21,500.00 |
| MAXI-3242AW | 32" x 42" Air Top & Bottom Heat TWIN | $ 24,300.00 |
|
|
||
| MAXI-4448AP | 44" x 48" MaxiPress Air | $ 16,700.00 |
|
|
||
| MAXI-4464AP | 44" x 64" MaxiPress Air | $ 22,950.00 |
| MAXI-4464AT | 44" x 64" Air Twin Shuttle | $ 26,950.00 |
| MAXI-4464AB | 44" x 64" Air Top & Bottom Heat SINGLE | $ 33,500.00 |
| MAXI-4464AW | 44" x 64" Air Top & Bottom Heat TWIN | $ 37,500.00 |
