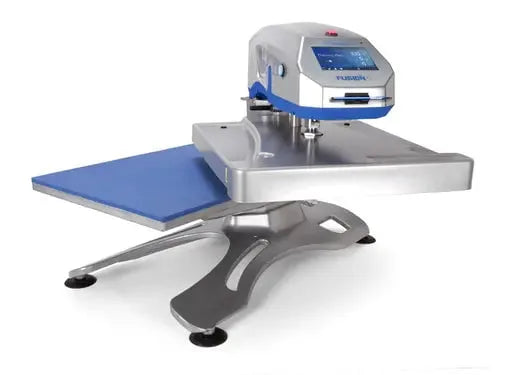

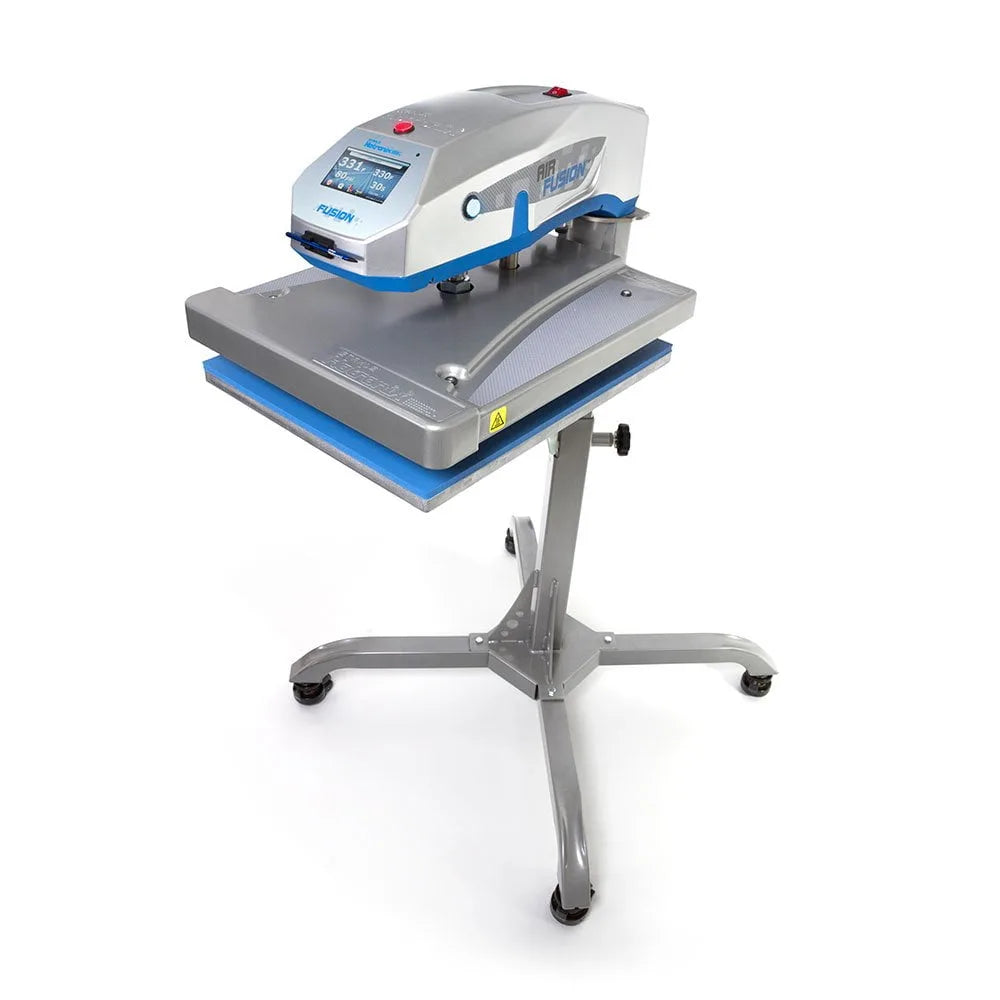

Hotronix® Air Fusion IQ™ Heat Press 16" X 18"

The Hotronix® Air Fusion IQ™ Heat Press (16" x 20") is the most advanced air-powered heat press on the market, designed for high-volume production, specialty decorators, direct-to-garment (DTG) printing, and embossing. With its fully automated, air-powered design, this press reduces operator fatigue while delivering consistent, high-pressure applications—perfect for demanding heat transfer projects.

Featuring Auto-Adjust Pressure™, the Air Fusion IQ™ automatically adjusts to the thickness of each item, eliminating the need for manual adjustments and ensuring flawless transfers every time. The exclusive Threadability™ lower platen allows decorators to easily rotate garments without repositioning, maximizing efficiency and precision.

With its touchscreen IQ™ controller, programmable settings, and real-time performance tracking, this press provides unmatched control, automation, and accuracy, making it the ultimate heat press for serious professionals.

Key Features & Benefits:

✔ Auto-Adjust Pressure™ – Automatically adjusts to different garment thicknesses, ensuring even pressure distribution.
✔ Full Threadability™ – Load garments once, then rotate and decorate any area effortlessly.
✔ Auto-Open & Auto-Swing Design – Hands-free operation with a foot pedal to reduce fatigue and increase production speed.
✔ Swing Motion for a Heat-Free Workspace – Enhances safety and comfort, preventing exposure to excessive heat.
✔ Touch Screen IQ™ Controller – Stores frequently used settings, tracks production cycles, and includes auto on/off functionality.
✔ Data Interface Port – Enables future software upgrades and online access to performance reports.
✔ Program & Store Up to Four Pressure & Time Settings – Ideal for multi-step applications.
✔ EZ-On Quick-Change Platens (Optional) – Swap platens without tools for various garment applications.
✔ 120 PSI Heavy Pressure Capability – Designed for demanding heat applications such as embossing and thick materials.
✔ 3/4" Thick Heat Platen with Fast-Recovering Heater Technology – Ensures consistent, even heat across the platen.
✔ Energy-Saving Sleep Mode – Automatically powers down after 4 hours of inactivity, reducing energy consumption.
✔ Corrosion-Free Die Pressure Cast 356 Aluminum Frame – Built for long-term durability in high-volume shops.
✔ UL/ULC/CE/RoHS Compliant – Meets industry safety and efficiency standards.

Electrical & Air Compressor Requirements:

• Electrical Options:
  • 120V / 15A / 1800W
  • 240V / 7.5A / 1800W
  • Requires a designated circuit breaker
• Air Compressor Requirement:
  • Minimum ½ horsepower, 2-gallon hold tank
  • Uses 2.3 CFM

Dimensions & Weight:

• Actual Weight: 152 lbs
• Shipping Weight: 245 lbs
• Machine Dimensions: 40" x 32" x 57"
• Shipping Dimensions: 40" x 48" x 58"

Warranty & Support:

✔ Lifetime Warranty on Heating Element
✔ 5-Year Warranty on Framework
✔ 2-Year Warranty on Circuit Board
✔ 1-Year Parts & Labor Warranty
✔ Proudly Made in the USA

Why Choose the Hotronix® Air Fusion IQ™ Heat Press?

✔ Fully automated air-powered design eliminates manual effort and improves workflow.
✔ Auto-Adjust Pressure™ ensures perfect application on garments of varying thickness.
✔ Touchscreen IQ™ controller offers real-time tracking and programmable settings.
✔ Threadability™ design maximizes efficiency, reducing garment repositioning.
✔ Designed for high-volume production environments and specialty decorators.

Ideal For:

• Professional print shops requiring high-volume, automated heat application.
• DTG decorators looking for a hover press that prevents ink smudging.
• Businesses needing precise, high-pressure transfers for specialty applications.
• Shops seeking a premium, fully automated heat press with cutting-edge technology.
