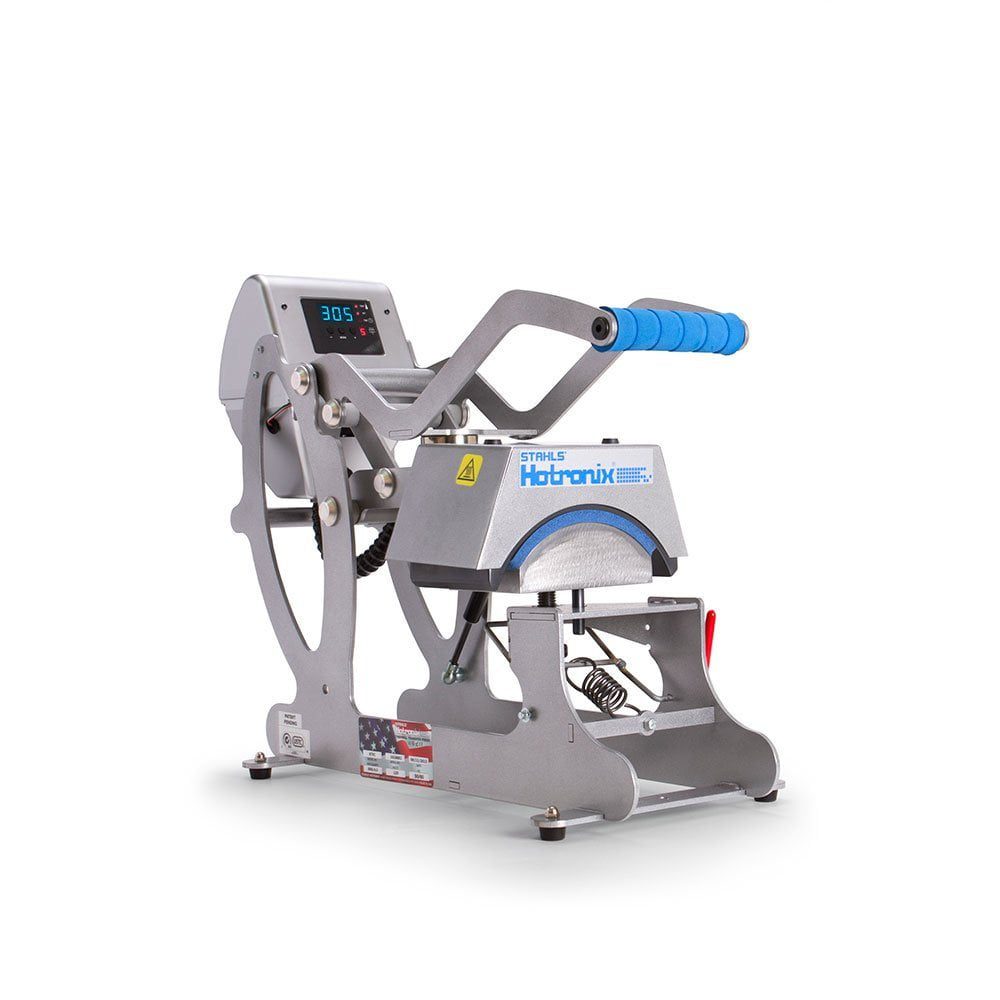

Hotronix® MAXX® Cap Heat Press

The Hotronix® MAXX® Cap Heat Press is the perfect solution for applying custom designs to caps, offering professional-grade precision, efficiency, and ease of use. Whether you're starting a business or expanding your product line, this press delivers consistent, high-quality results with minimal effort.

Equipped with a patented Magnetic Auto-Open feature, this press automatically releases at the end of the cycle, preventing over-application and ensuring uniform transfers. The Twin Timer™ technology allows for pre-heating and final application, streamlining production. Additionally, the Under-the-Center Pressure Adjustment system ensures even pressure across the entire cap surface, eliminating inconsistencies in heat distribution.

Key Features & Benefits:

✔ Patented Magnetic Auto-Open Feature – Automatically lifts at the end of the press cycle to prevent over-application.
✔ Patented Magnetic Assist Lock-Down – Reduces strain on wrists and shoulders, making operation effortless.
✔ Quick-Change Lower Platen (3.5" x 6") – Easily switch platens for different cap styles and sizes.
✔ Under-the-Center Pressure Adjustment – Provides even, edge-to-edge heat and pressure distribution for perfect transfers.
✔ Platinum RTD Heat Sensor & Tubular Heating Element – Eliminates cold spots, ensuring consistent heat distribution.
✔ Space-Saving Clamshell Design – Compact and efficient, perfect for shops with limited workspace.
✔ Interchangeable Platens Available – Expand customization options with specialty platens for different cap styles.
✔ 3/4" Thick Upper Platen with Non-Stick Coating – Prevents sticking and ensures clean, professional-quality transfers.

Electrical Options:

• 120V / 4A / 500W
• 240V / 2A / 500W
• Requires a designated circuit breaker for optimal performance.

Specifications:

• Actual Weight: 30 lbs
• Shipping Weight: 41 lbs
• Machine Dimensions: 21" x 10" x 18"
• Shipping Dimensions: 26" x 15" x 21"
• Temperature Range: 205°F – 420°F
• UL/ULC/CE/ROHS Approved – Ensures safety and reliability.

Warranty & Support:

• Lifetime Warranty on Heating Element
• 5-Year Warranty on Framework
• 2-Year Warranty on Circuit Board
• 1-Year Parts & Labor Warranty

Why Choose the Hotronix® MAXX® Cap Heat Press?

✔ Designed specifically for professional cap printing, ensuring even pressure and precise application.
✔ Magnetic auto-open feature prevents over-application and enhances workflow efficiency.
✔ Lightweight and compact, making it ideal for mobile setups or shops with limited space.
✔ Durable construction with a high-performance heating element for long-lasting reliability.
✔ Compatible with interchangeable platens for increased versatility.

Ideal For:

• Custom cap printing businesses looking for a reliable and efficient press.
• Shops expanding into promotional and branded headwear.
• Businesses needing a user-friendly heat press for high-volume cap production.
• Decorators using heat transfer vinyl (HTV), sublimation, and screen-printed transfers on caps.
