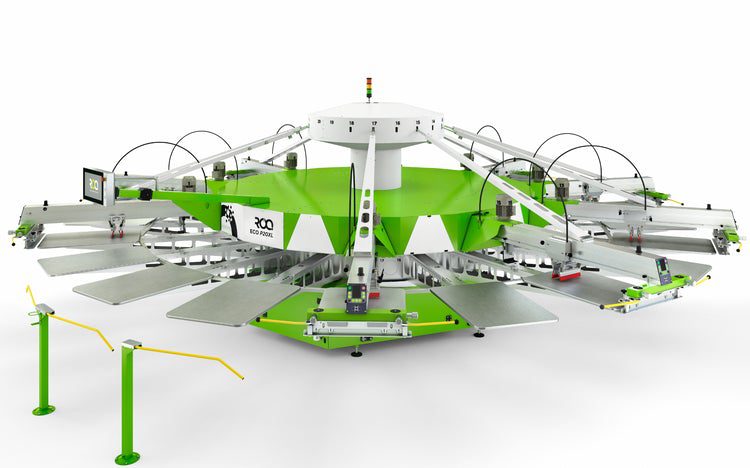

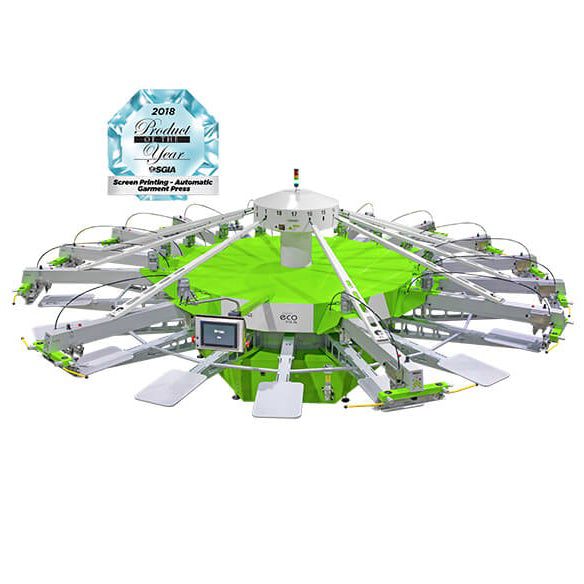

ROQ ECO Automatic Screen Printing Press – High-Speed, Versatile Printing

Achieve unmatched speed, precision, and versatility with the ROQ ECO Automatic Screen Printing Press, the ultimate solution for high-volume, professional screen printing. Designed with innovative technology, durable construction, and advanced automation, the ECO press offers consistent high-speed production while integrating special effects capabilities such as automatic flock and foil application. With configurations ranging from 10 to 18 colors and a maximum print speed of 1,300 pieces per hour, the ROQ ECO is built for efficiency, scalability, and superior print quality.

Key Features & Benefits:

✔ High-Speed Production – Prints up to 1,300 pieces per hour, maximizing efficiency.
✔ Customizable Configuration – Available in 10 to 18 colors and up to 20 stations.
✔ Oversized Print Capabilities – Maximum print size of 39.4" x 43.3" for large-format designs.
✔ Advanced Automation Features – Integrates automatic flock and foil applications for specialty prints.
✔ Precision Engineering – Index precision of -0.001" ensures flawless registration.
✔ Heavy-Duty Construction – Built for long-term, high-volume production environments.

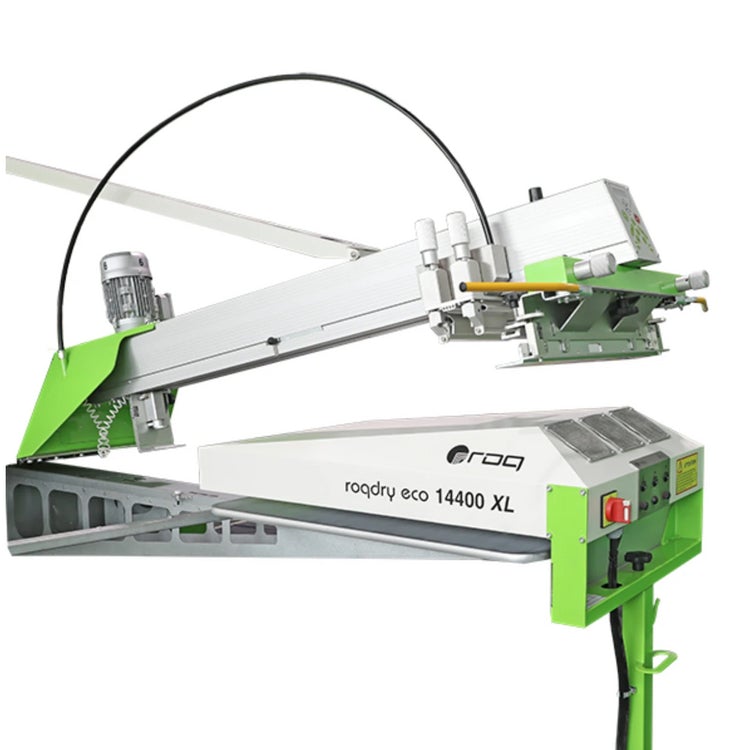

✔ Up to 10 Flash Dryer Connections – Expands versatility for multicolor and specialty prints.

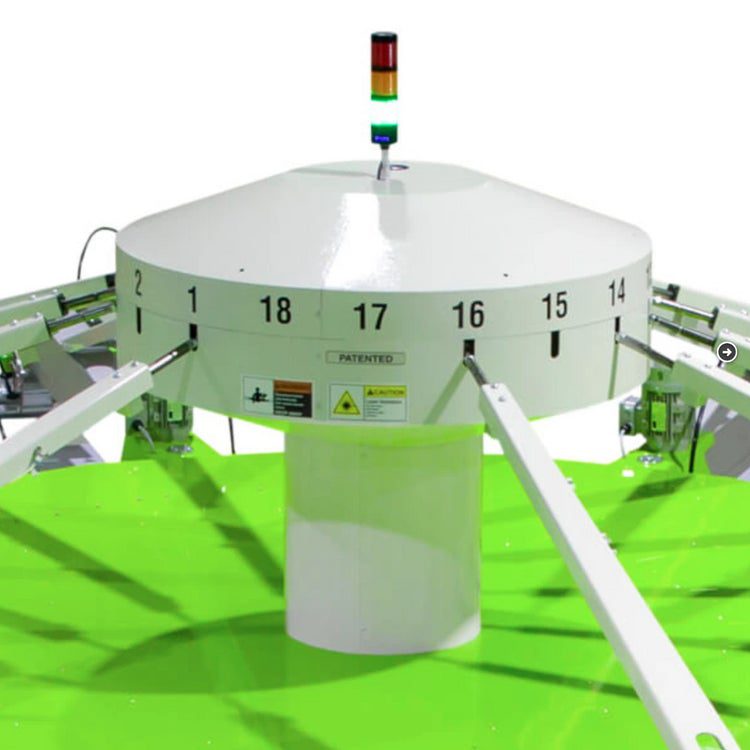

✔ AC-Driven Servo Rotation System – Provides smooth and accurate indexing for consistent print placement.

Specifications:

• Maximum Colors: 18
• Maximum Pallets: 20
• Flash Dryer Connections: Up to 10
• Maximum Print Size: 39.4" x 43.3"
• Maximum Frame Size: 45.3" x 57"
• Maximum Pallet Size: 41.3" x 53.1"
• Index Precision: -0.001"
• Maximum Production Speed: 1,300 prints per hour
• Power Requirements:
  • Maximum Consumption: 10.5 kVA
• Air Requirements:
  • Compressed Air Consumption: 40 L/min - 0.7 CFM per printhead
• Machine Dimensions:
  • Minimum Diameter: 14.8'
  • Total Height: 7.72'
  • Minimum Base Width: 5.5'

Why Choose the ROQ ECO Automatic Screen Printing Press?

✔ Industry-Leading Speed & Performance – Prints faster with high-precision registration.
✔ Versatile & Scalable – Configurable for small, medium, and large-scale production.
✔ Advanced Specialty Printing Capabilities – Built-in flock and foil application for high-end designs.
✔ Durable & Reliable – Long-lasting industrial-grade construction for continuous operation.

Ideal For:

✔ Large-Scale Screen Printing Businesses
✔ Shops Specializing in Specialty Prints (Foil, Flock, High-Detail Designs)
✔ Production Facilities Handling High-Volume Orders
✔ Custom Apparel Brands Requiring Speed, Accuracy, and Scalability

Take your screen printing operation to the next level with the ROQ ECO Automatic Screen Printing Press, designed for speed, versatility, and long-term durability. Order today and experience the future of automated screen printing!
