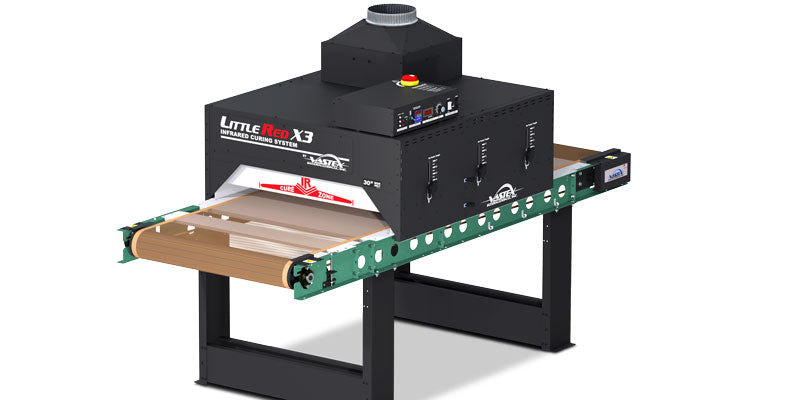

Vastex LittleRed X3 Series Dryer - 15,600w - 54"
Vastex LittleRed X3 Series Dryer - 15,600w - 54" is backordered and will ship as soon as it is back in stock.
Care information
Care information
Display general product information or specific product information using metafields.
Delivery and Shipping
Delivery and Shipping
Add some general information about your delivery and shipping policies.
Vastex LittleRed X3 Series Dryer - 15,600w - 54" is backordered and will ship as soon as it is back in stock.
Highlight title
Text to highlight a key feature of your product
Description
Description
he Little Red X3 Conveyor Dryer from Vastex offers a 41 in. (104 cm) long heating chamber that houses three infrared heaters, closely aligned with no gaps, to maintain a constant curing temperature while the garments travel the length of the conveyor.
Inside the heating chamber, the three height adjustable infrared heaters raise the temperature of the ink (not the air inside the chamber) with sustained intensity to maximize curing efficiency.
The Little Red X3-30 model with 30 in. (76 cm) wide x 88 in. (224 cm) long conveyor belt is offered with three 24 in. (61 cm) wide 240V/2,600 watt heaters (total wattage 7,800 w) to cure up to 360 plastisol-printed images or water-based or discharge printed images per hour.
The Little Red X3-54 model with 54 in. (137 cm) wide x 88 in. (224 cm) long conveyor is equipped with three 48 in. (122 cm) wide 240V/5,200 watt infrared heaters (total wattage 15,600 w) to cure up to 720 plastisol-printed images or 240 water-based or discharge printed images per hour.
Capacity of both models can be expanded as needs grow by adding modular heating chamber(s) and longer conveyor belts.
POWERFUL
LR X3-30: (2) 240V/2,600 watt heaters (total 7,800 watts)
LR X3-54: (2) 240V/5,200 watt heaters (total 15,600 watts)
EFFICIENT
Closely aligned heaters with no gaps between to maintain a constant curing temperature while the garments travel the length of the conveyor
DEPENDABLE
Industry-leading 15-year heater warranty
COOL
Powered exhaust system cools the outer cabinet while evacuating moisture and fumes
ACCURATE
Digital PID Temperature controller is accurate to +/-1°F
CONSISTENT
DC belt speed control with digital display
HEAVY DUTY
"X-Series" Conveyor Belt Tracking System with Teflon coated fiberglass belt
ADJUSTABLE
2 - 7 in. (5 - 18 cm) belt-to-heater clearance, adjustable separately on each side for each heater
EXPANDABLE
Add 18 in. (46 cm) and 36 in. (92 cm) chambers and/or 18in. (46 cm) belt extensions
POWER REQUIREMENTS
240V / 68A / 1 Ph. / 3 wire 50/60HZ
All amps shown are FLA (Full Load Amps), not recommended line size! This dryer must be hard wired to the power terminal provided. A licensed electrician must be consulted and should refer to articles, 210.20(a), 215.3 and 310 of the NEC code.
OPTIONS
- Additional heating chambers and conveyor belt extensions
- Locking casters for mobility
- Heavy duty belt motor (recommend for longer conveyor belts), standard on X3-54 models
- Creeper gear
